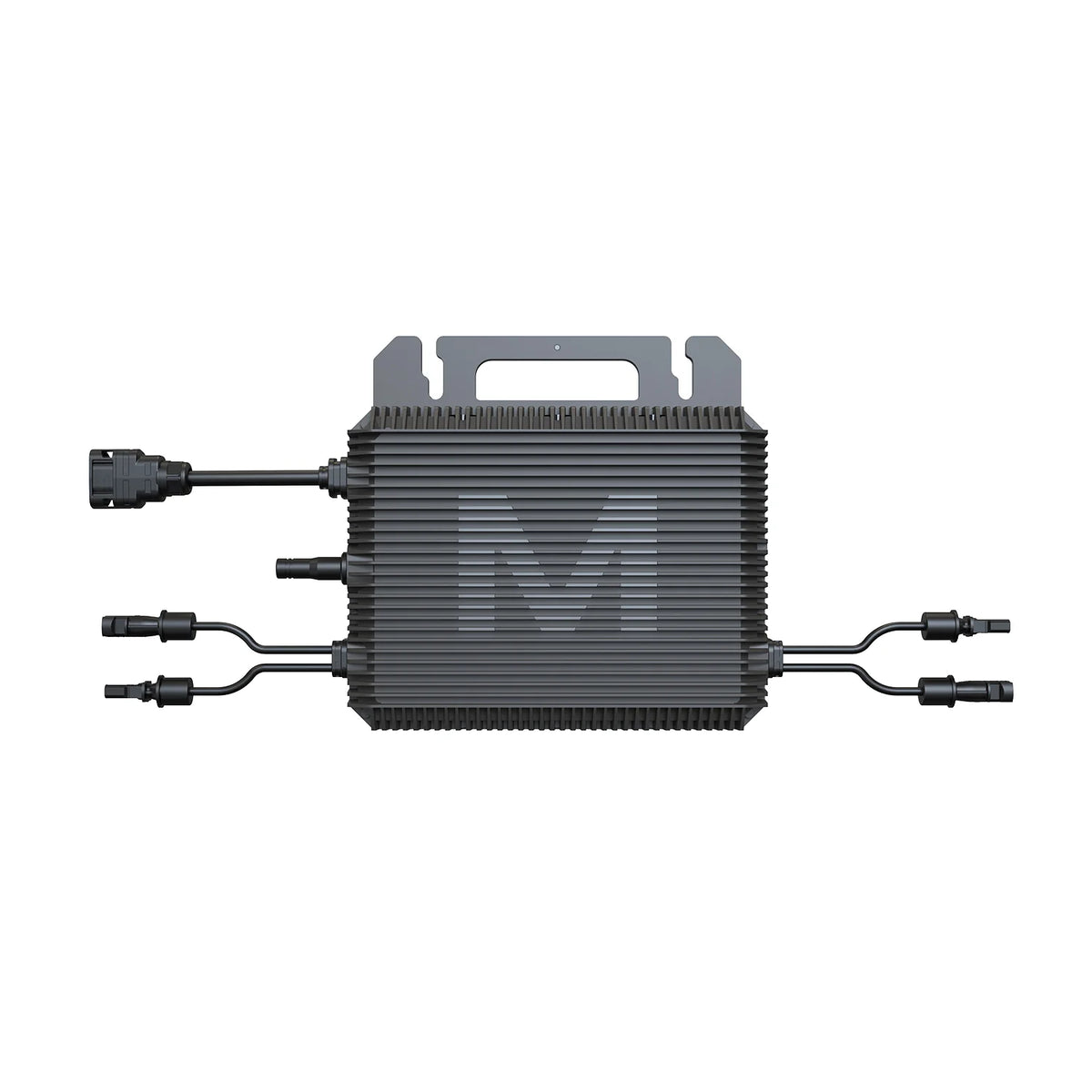

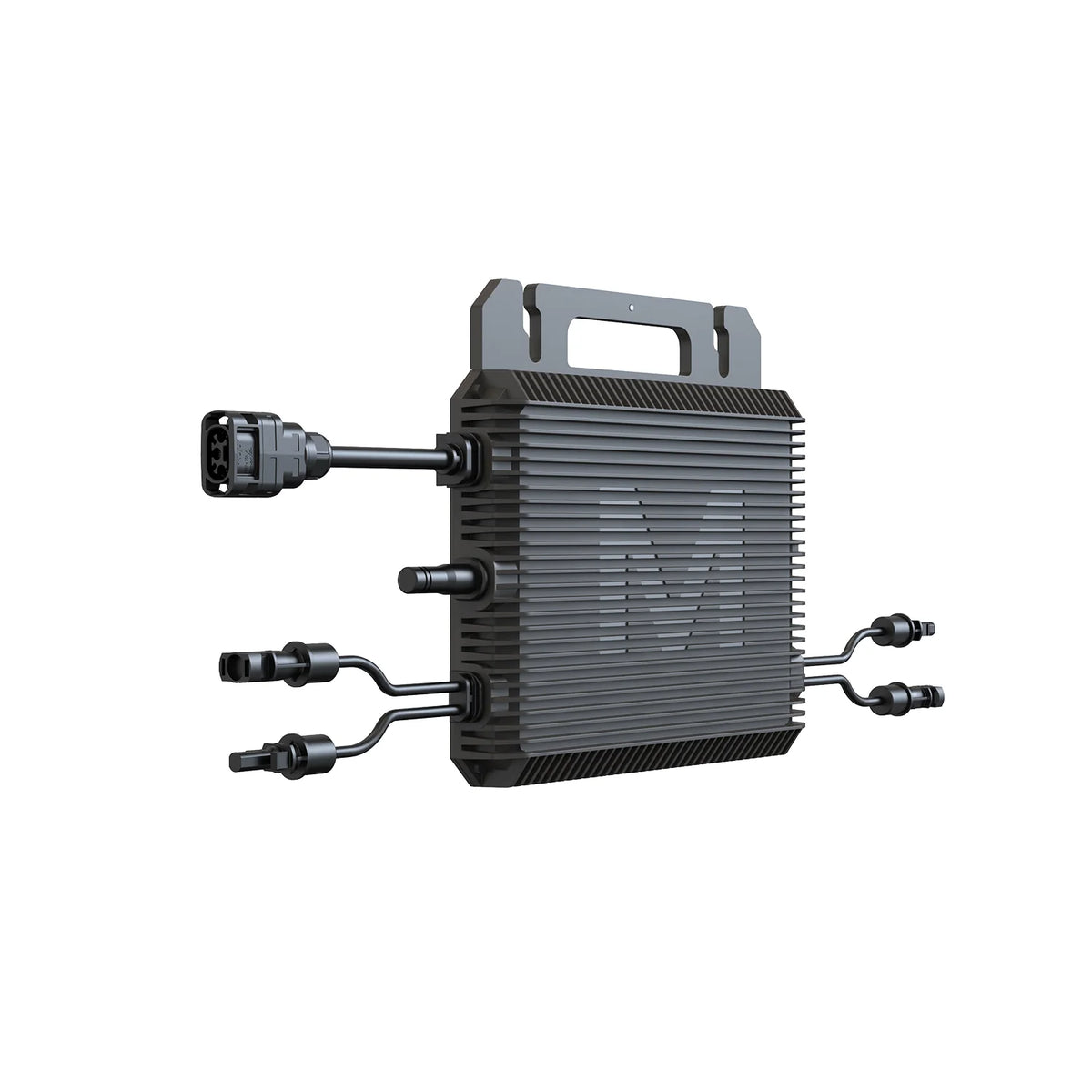

Marstek SATURN-M 800W Microinverter – G98 Approved

The Marstek SATURN-M 800W Microinverter is a compact, high-efficiency microinverter designed for small-scale and plug-in solar systems.

With 800W maximum AC output, two independent MPPT inputs and universal MC4 solar connections, the SATURN-M allows two compatible solar panels to be connected and their output converted into usable 230V AC power.

Designed for reliable year-round operation, the SATURN-M features IP67 weather protection, up to 99.8% MPPT efficiency and an operating temperature range from -40°C to +65°C. Integrated Wi-Fi connectivity allows system performance to be monitored through the Marstek Energy platform.

For the UK market, the M2-800 is G98 compliant, making it suitable for appropriately configured UK grid-connected solar installations.

Key Features

• 800W maximum AC output
• 2 independent MPPT inputs
• Up to 99.8% MPPT efficiency
• Universal MC4 solar connections
• 16–60V DC operating input range
• 25–55V MPPT operating range
• 230V AC output
• IP67 weather-resistant construction
• Wi-Fi connectivity and Marstek Energy monitoring
• Natural convection cooling – no cooling fan
• G98 compliant for the UK market
• 10-year manufacturer warranty

Ideal for compact solar installations, including garden, garage, shed, balcony and small home solar systems where a high-quality Marstek microinverter is required.

Dimensions: 565 × 251 × 38 mm
Weight: 3.85 kg
Ingress protection: IP67
Cooling: Natural convection
Operating temperature: -40°C to +65°C

Model: SATURN-M M2-800
Maximum AC output: 800W
Nominal AC voltage: 230V
Maximum continuous AC current: 3.48A
Maximum DC input voltage: 60V
PV input operating range: 16–60V
MPPT voltage range: 25–55V
Start-up voltage: 22V
Typical PV input power: 320–540W per input
Maximum input current: 16A × 2
MPPTs: 2 independent MPPTs
MPPT efficiency: 99.8%
Maximum output efficiency: 96.5%
Power factor: >0.99
THD: <3%
Night consumption: <50mW
Protection rating: IP67
Inverter topology: Isolated
Cooling: Natural convection
Monitoring: MARSTEK ENERGY
Communication: Wi-Fi / 4G
Warranty: 10 years

Price
Regular price
£134.99
Sale price
£134.99
Regular price
Available In Stock
Free Shipping
VAT included
Up to 10 Years Warranty
Marstek SATURN-M 800W Microinverter – G98 Approved
SMART SOLAR, MADE SIMPLE

Turn Sunshine Into Usable Home Energy

The MARSTEK SATURN-M converts DC electricity from your solar panels into AC electricity for your home. With two independent MPPT inputs, it can manage two solar panels individually to help maximise generation throughout the day.

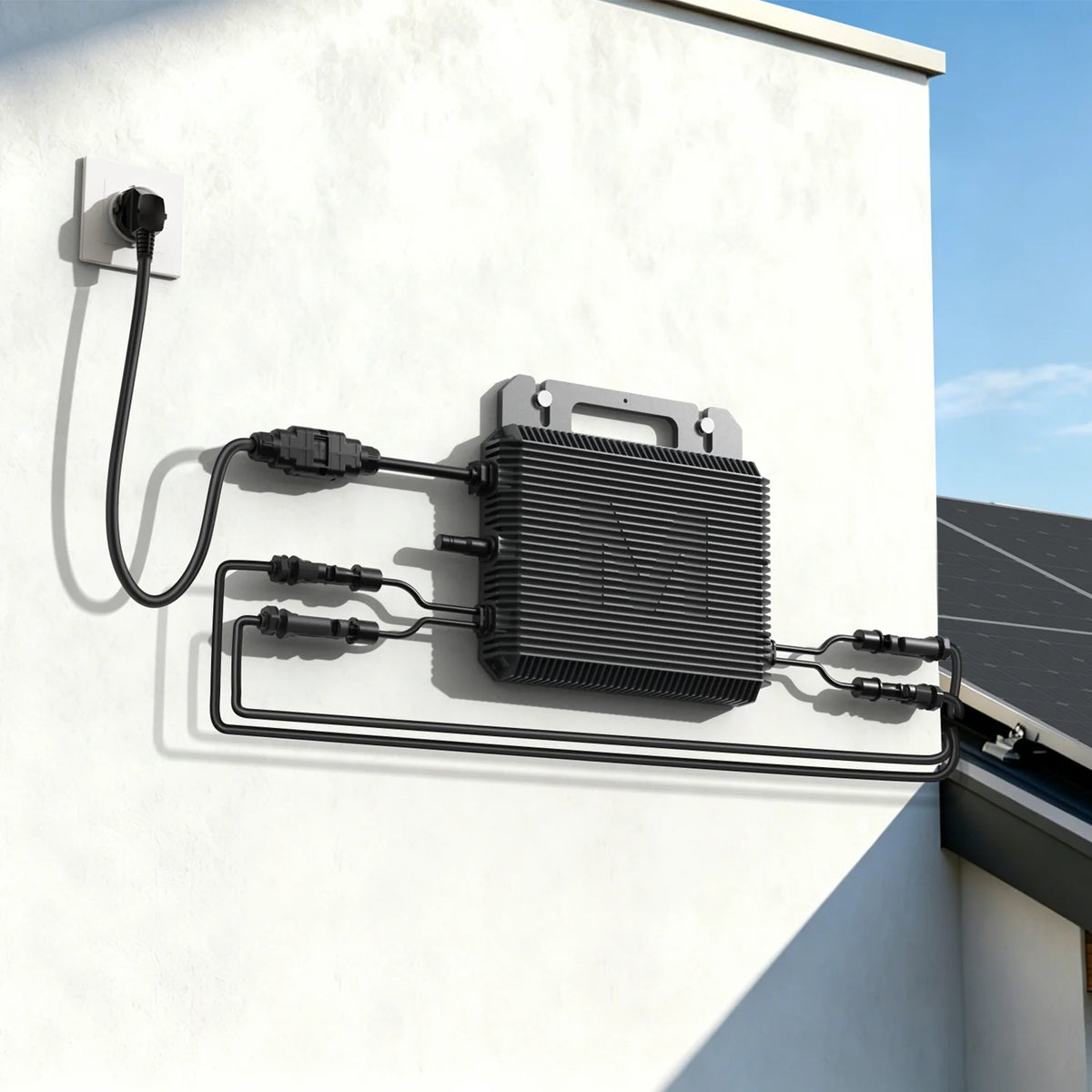

Compact, weather-resistant and designed for simple solar installations, it’s an ideal solution for balconies, gardens, garages and other small-scale solar systems

MARSTEK SATURN-M TECHNOLOGY

Small Inverter. Smart Solar.

Dual MPPT Technology

 Two independent MPPT inputs manage each solar panel individually, helping optimise generation when conditions differ between panels.

800W AC Output

 Convert solar energy into usable 230V AC power, with up to 800W output for compact home and plug-in solar installations.

Smart App Monitoring

Track solar generation and system performance from your phone with smart monitoring through the MARSTEK Energy app.

UK STOCK & FAST DELIVERY

In Stock. Delivered Fast

Buy directly from Marstek Direct, with the SATURN-M held in stock here in the UK.

Enjoy FREE UK delivery, with orders dispatched from our UK warehouse using DPD Next Day delivery — so you can get your solar project up and running sooner.
